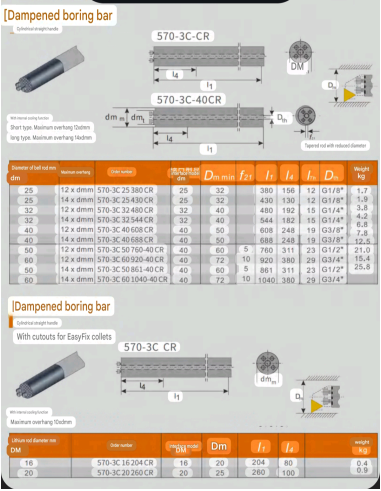

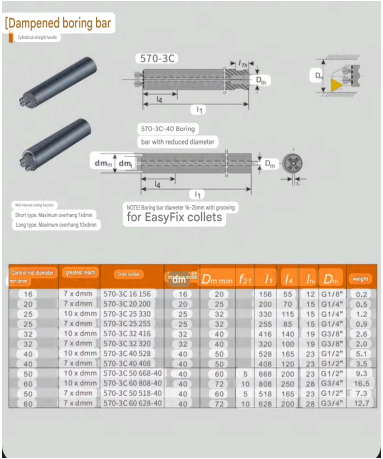

Anti Vibration Dampened Boring Bar

Anti Vibration Dampened Right Hand Boring Bar Dia 50mm Lenth 861mm 570-3C 50 861-40 CR

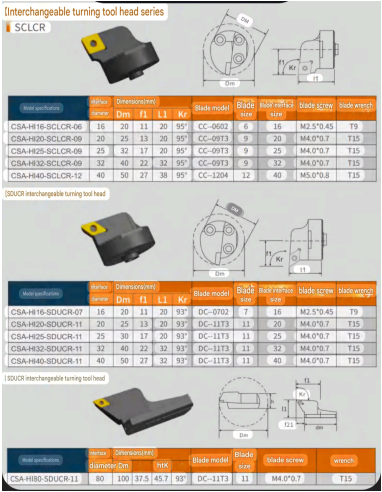

Inter changeable Turning Tool Head VBMT160408
Inter changeable Turning Tool Head DNMG150608
Product Title

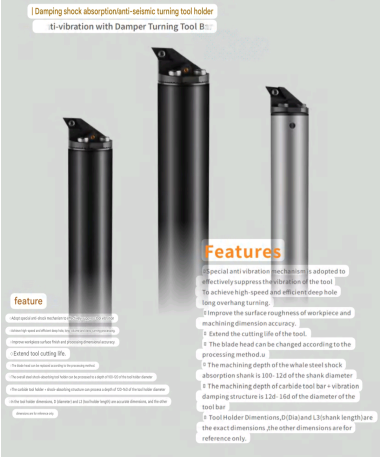

Damping shock absorption / anti-seismic turning tool holder
Anti-vibration with Damper Turning Tool Bar

Features

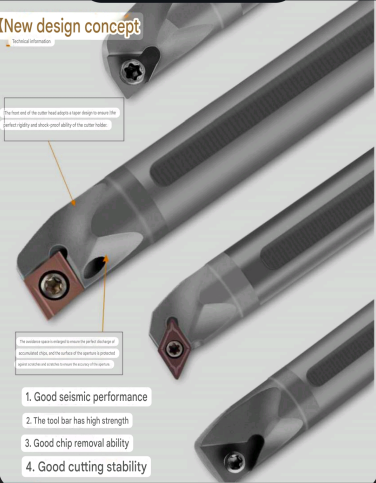

Vibration Suppression: Special anti-vibration mechanism is adopted to effectively suppress the vibration of the tool.

Deep Hole Turning: Achieve high-speed and efficient deep hole long overhang turning.

Surface Quality: Improve the surface roughness of workpiece and machining dimension accuracy.

Tool Longevity: Extend the cutting life of the tool.

Interchangeable: The blade head can be changed according to the processing method.

Technical Specifications
Steel Shank Performance: The machining depth of the whole steel shock absorption shank is 100–12D of the shank diameter.

Carbide Shank Performance: The machining depth of carbide tool bar + vibration damping structure is 12D–16D of the diameter of the tool bar.

Measurement Accuracy: Tool Holder Dimensions, D (Dia) and L3 (shank length) are the exact dimensions; the other dimensions are for reference only.
